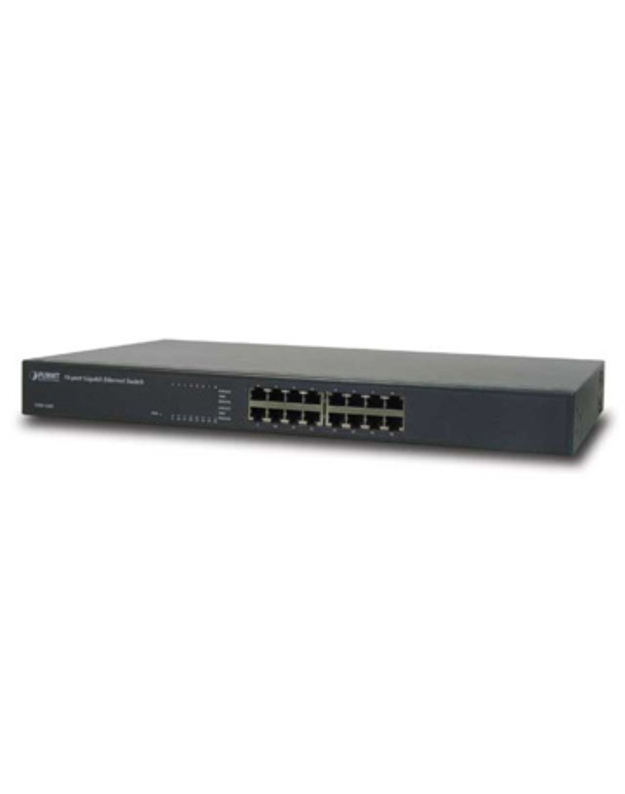

• 16-prievadų Gigabitinis interneto tinklo šakotuvas Planet GSW-1601

Prekės kodas: GSW-1601

Turimas kiekis: Prekė sandėlyje

Gamintojas: PLANET TECHNOLOGY CORPORATION

€131.77

Trumpas aprašymas:

• Gigabitinis interneto tinklo šakotuvas 16-prievadų
• 16 x 10/100/1000Mbps, metalinis korpusas
• Auto-MDI/MDIX visiems portams
• Palaiko CSMA / CD protokolus
• Atitinka interneto standartus: IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX, IEEE 802.3ab 1000Base-T
• MAC adresų atmintis: 8k Bitų
• Maitinimas 100-240V AC, 50/60Hz, 0.2A
• Išmatavimai: 440(L) x 180(W) x 45 (H) mm.

Techninė charakteristika:

• Hardware Version: Version 4
• 10/100/1000Base-T MDI/MDIX Ports: 16
• Throughput (packet per second): 23.8Mpps
• Switch fabric: 32Gbps / non-blocking
• Weight: 2.30kg
• Power Consumption / Dissipation: 13 Watts / 44 BTU
• Power Requirement: 100-240V AC, 0.6A, 50/60Hz
• Dimension (W x D x H): 440 x 180 x 45 mm, 1U height
• Switch Processing Scheme: Store-and-Forward
• Address Table: 8K entries
• Jumbo packet size: 9K
• Flow Control: Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex

Standards Conformance

• Regulation Compliance: FCC Part 15 Class A, CE
• Standards Compliance: IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) IEEE 802.3ab(Gigabit Ethernet)IEEE 802.3x (Full-duplex flow control)

Environmental Specification

• Temperature: Operating: 0~50 Degree C
• Storage: -40~70 Degree C
• Humidity: Operating: 5~90%
• Storage: 5~90% (Non-condensing)
